Truck Mounted Coiled Tubing Unit
Features

  • Equipment mounted on two trucks to improve flexibility for harsh road conditions in southwest China and northwest China;

  • Main truck adopts frame beam to improve load capacity;

  • Dropped chassis frame allows reel to carry tubings of large diameter (≥2”); quick-in-drum design permits safe and convenient change of reel;

  • BOP backup system to meet the requirements in case two BOPs are needed;

  • Auxiliary truck equipped with the hydraulic tubing feed system to reduce labor on site;

  • Ports for connecting with the yard spooler and tubing blower designed extending equipment functions.

Slide reading
Specifications
Model LGC450LGC360LGC270LGC180
Chassis Main Truck Mercedes-Benz / MAN / Sinotruck,
       Auxiliary Truck Mercedes-Benz / MAN / BEIBEN / Sinotruck
Power Source Chassis Engine
Tubing Reel Model LGGT 148-78-86LGGT 148-78-86LGGT 120-72-78LGGT 110-72-78
Tubing Reel Capacity

2"-21,650 ft
  (1 3/4"-28,990 ft)
2"-6,600 m
(1 3/4"-8,800 m)

2"-21,650 ft

(1 3/4"-28,990 ft)
2"-6,600 m

(1 3/4"-8,800 m)

1 1/2"-20,670 ft
(1 3/4"-14,100 ft)

1 1/2"-6,300 m
 (1 3/4"-4,300 m)

1 1/4"-22,000 ft
 (1 1/2"-14,440 ft)
1 1/4"-6,700 m
(1 1/2"-4,400 m)

Injector Model ZRT-100KZRT-80KZRT-60KZRT-40K
Continuous Pulling Capacity 100,000 lb (45,000 kg)80,000 lb (36,000 kg)60,000 lb (27,000 kg)40,000 lb (18,000 kg)
Continuous Snubbing Capacity 50,000 lb (22,500 kg)40,000 lb (18,000 kg)30,000 lb (13,600 kg)20,000 lb (9,000 kg)
Well Control Equipment3 1/16" / 4 1/16" / 5 1/8"
Max. Working Pressure 10,000 psi (69 MPa) /15,000 psi (103.5 MPa)
Crane (Optional)18 t


Successful Cases
Slide reading

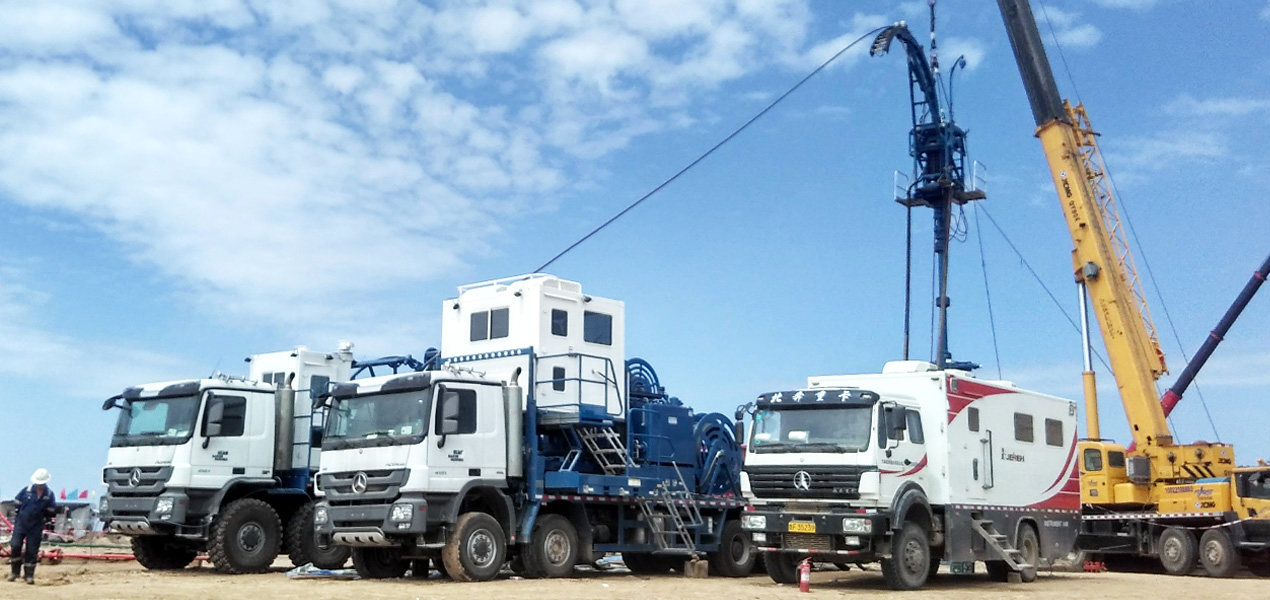

Jereh CTU for SINOPEC Workover
Jereh CTU for Shale Gas Fracturing in Chongqing,China
Jereh CTU in Shanxi,China
Jereh CTU in Shanxi,China
